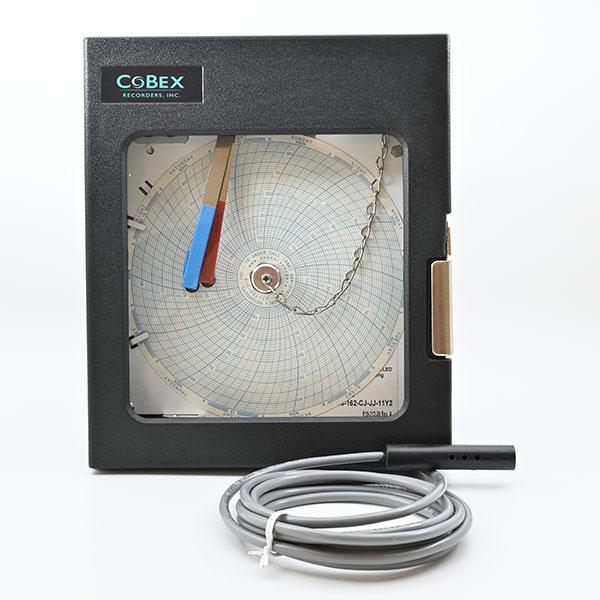

Temperature / Humidity 6" Recorder with Ink Chart

  • Sale
  • Regular price $795.00


Description

These recorders are ideal for accurate measurement of temperature and humidity. Microprocessor based electronic sensing and pen actuation assure an accurate and robust unit able to withstand shock and vibration.

** Please be advised that the assembly of a customized recorder can take up to 5 business days to create. Recorders that are instock are generally shipped within 2-3 business days. You will receive an email to confirm the estimated ship date.

Applications:
  • Clean Rooms
  • Paper Storage
  • Warehouses
  • Offices
  • Laboratories
  • Hospitals
Features:
  • Microprocessor Based
  • Rugged / durable construction
  • Battery back-up available
  • 1 or 2 SPDT relay contacts
  • 6" diameter charts
  • 110V/220V, 50/60Hz standard
  • Flush mounting, surface mounting or portable cases
  • Highly accurate
  • Fast response time
  • Simple push-button calibration
  • Chart hold down tabs prevent curling of chart paper
  • Remote electronic humidity and temperature sensors
  • Designed and manufactured in the USA
*Specifications:



° Achievable Humidity Accuracy: +/- 3% (0-100%)
° Achievable Temperature Accuracy: +/- 0.25 ° C (0.5 ° F)
Standard Ranges: 0 to 100 ° (F or C)
-20 to 120 ° (F or C)
0 to 150 ° (F or C)
Chart Rotation Speed: 7 day or 24 hour
Ambient Operating Conditions: 0 ° to +40 ° C, 0-95% RH,
Non-condensing
Relay Contacts: 1 Amp @ 120 VAC
Pen Type: Red and Blue Fiber Tipped
(Red = Temp, Blue = Humidity)
Battery Backup One 9 Volt Alkaline Battery
Battery Backup Life: Minimum 24 hours



*Specifications are subject to change without notice.
° Depends on probe type and standard used for calibration.
